Slowly Changing Dimension (SCD) with ODI

SCD Types
1) Overwrite old data with new
2) Adding a new row with surrogate key
3) Adding columns represents first, last and previous data


Other: If data is big, you can take monthly snapshots to save difference. Data is smaller and you want to track multiple columns, then you can take daily snapshots.


SCD type 2 is mostly prefered as keeps old versions. So let's roll on ODI for SCD type 2.

Our example will be sh.channels table comes default on Oracle db;

CREATE TABLE CHANNELS
(
  CHANNEL_ID        NUMBER                      NOT NULL,
  CHANNEL_DESC      VARCHAR2(20 BYTE)           NOT NULL,
  CHANNEL_CLASS     VARCHAR2(20 BYTE)           NOT NULL,
  CHANNEL_CLASS_ID  NUMBER                      NOT NULL,
  CHANNEL_TOTAL     VARCHAR2(13 BYTE)           NOT NULL,
  CHANNEL_TOTAL_ID  NUMBER                      NOT NULL
);


INSERT INTO SH.CHANNELS ( CHANNEL_ID, CHANNEL_DESC, CHANNEL_CLASS, CHANNEL_CLASS_ID, CHANNEL_TOTAL,
CHANNEL_TOTAL_ID ) VALUES (
3, 'Direct Sales', 'Direct', 12, 'Channel total', 1);
INSERT INTO SH.CHANNELS ( CHANNEL_ID, CHANNEL_DESC, CHANNEL_CLASS, CHANNEL_CLASS_ID, CHANNEL_TOTAL,
CHANNEL_TOTAL_ID ) VALUES (
9, 'Tele Sales', 'Direct', 12, 'Channel total', 1);
INSERT INTO SH.CHANNELS ( CHANNEL_ID, CHANNEL_DESC, CHANNEL_CLASS, CHANNEL_CLASS_ID, CHANNEL_TOTAL,
CHANNEL_TOTAL_ID ) VALUES (
5, 'Catalog', 'Indirect', 13, 'Channel total', 1);
INSERT INTO SH.CHANNELS ( CHANNEL_ID, CHANNEL_DESC, CHANNEL_CLASS, CHANNEL_CLASS_ID, CHANNEL_TOTAL,
CHANNEL_TOTAL_ID ) VALUES (
4, 'Internet', 'Indirect', 13, 'Channel total', 1);
INSERT INTO SH.CHANNELS ( CHANNEL_ID, CHANNEL_DESC, CHANNEL_CLASS, CHANNEL_CLASS_ID, CHANNEL_TOTAL,
CHANNEL_TOTAL_ID ) VALUES (
2, 'Partners', 'Others', 14, 'Channel total', 1);
COMMIT;


Channels_hist table is created for SCD;
CREATE TABLE CHANNELS_HIST
(
  CHANNEL_ID        NUMBER                      NOT NULL,
  CHANNEL_DESC      VARCHAR2(20 BYTE)           NOT NULL,
  CHANNEL_CLASS     VARCHAR2(20 BYTE)           NOT NULL,
  CHANNEL_CLASS_ID  NUMBER                      NOT NULL,
  CHANNEL_TOTAL     VARCHAR2(13 BYTE)           NOT NULL,
  CHANNEL_TOTAL_ID  NUMBER                      NOT NULL,
  ETL_START_DATE DATE,
  ETL_END_DATE DATE,
  CURRENT_FLAG NUMBER
);

After table is created, switch to ODI and open model tab, reverse channels_hist table, and select OLAP type: Slowly changing dimension option checked.

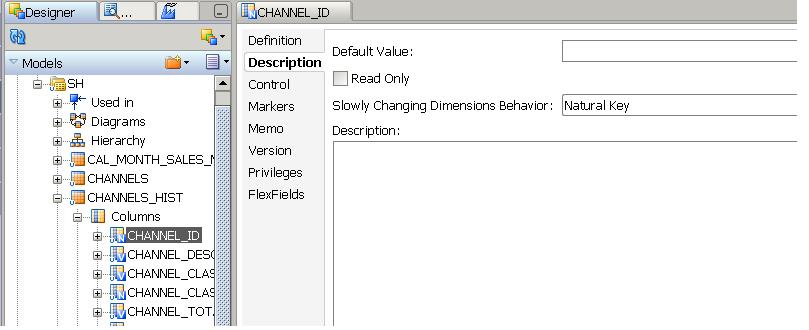

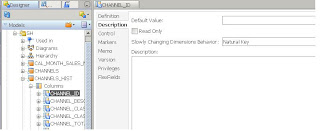

On the side window, scrool to Channel_hist model, expand model columns and double-click to channel_id, go to description tab and select Slowly Changing Behavior:Natural Key option.

Slowly Changing Behavior: Add row on change option is selected for CHANNEL_DESC, CHANNEL_CLASS, CHANNEL_CLASS_ID, CHANNEL_TOTAL, CHANNEL_TOTAL_ID columns.
Following Fields and Selected Slowly Changing Behaviors:
ETL_START_DATE - Starting timestamp,
ETL_END_DATE - Ending timestamp,
CURRENT_FLAG - Current record flag


IKM Slowly Changing Dimension is selected on flow tab of interface INT_CHANNELS_HIST.

When interface is executed, etl_end_date field gets 01/01/2400 as hard-coded in KM even I mapped it to to_date('29990101', 'YYYYMMDD').

First version of Channels_hist table is right below:
select * from CHANNELS_HIST

CHANNEL_ID CHANNEL_DESC CHANNEL_CLASS CHANNEL_CLASS_ID CHANNEL_TOTAL
CHANNEL_TOTAL_ID ETL_START_DATE ETL_END_DATE CURRENT_FLAG

3 Direct Sales Direct 12 Channel total 1 18.10.2011 21:53:17 1
9 Tele Sales Direct 12 Channel total 1 18.10.2011 21:53:17 1
5 Catalog Indirect 13 Channel total 1 18.10.2011 21:53:17 1
4 Internet Indirect 13 Channel total 1 18.10.2011 21:53:17 1
2 Partners Others 14 Channel total 1 18.10.2011 21:53:17 1


And now I will update data:
UPDATE CHANNELS
SET CHANNEL_DESC='Telephone'
where channel_id=9;

UPDATE CHANNELS
SET CHANNEL_DESC='Direct'
where channel_id=3;

commit;

ODI generates two new records holds new data after Re-executing the interface. Old versions flagged as current_flag=0. ETL_END_DATE updated to 18.10.2011 23:32:07. And new data shows us updated versions as below:
CHANNEL_ID CHANNEL_DESC CHANNEL_CLASS CHANNEL_CLASS_ID CHANNEL_TOTAL CHANNEL_TOTAL_ID ETL_START_DATE ETL_END_DATE CURRENT_FLAG
--Old records
3 Direct SalesDirect 12 Channel total 1 18.10.2011 23:11:30 18.10.2011 23:32:07 0
9 Tele Sales Direct 12 Channel total 1 18.10.2011 23:11:30 18.10.2011 23:32:07 0

--New records
3 Direct Direct 12 Channel total 1 18.10.2011 23:32:07 01.01.2400 1
9 Telephone Direct 12 Channel total 1 18.10.2011 23:32:07 01.01.2400 1

Instead of etl_start_date and etl_end_date fields, we can use insert and update dates of source table if existed. But we have created our insert-update dates in SCD system.

Actual, last, current records can be selected as below:

select * from CHANNELS_HIST

where current_flag=1

Now one more test, add a new record:

insert into sh.channels

values(10, 'Brochure', 'Indirect', 13, 'Channel total', 1);

commit;

Re-execute the interface and select new record with channel_id.

select * from channels_hist

where channel_id=10

CHANNEL_ID CHANNEL_DESC CHANNEL_CLASS CHANNEL_CLASS_ID CHANNEL_TOTAL CHANNEL_TOTAL_ID ETL_START_DATE ETL_END_DATE CURRENT_FLAG

10 Brochure Indirect 13 Channel total 1 18.10.2011 23:45:11 01.01.2400 1

Second more test :D
Delete the new record and see how is the change on SCD.

delete from channels

where channel_id=10;

commit;

Nothing changed!!!
Explanation on IKM Slowly changing dimension definition mentions about this restriction:

- As this Knowledge Module is dedicated to Datawarehouse Projects (where data should not be removed), when using it with a journalized Source Datastore, it is not possible to synchronize deletions. Therefore, data should be manually filtered to exclude any source delete events (add a filter on JRN_FLAG = 'I').

Hope this will be helpfull. See ya! : D
